RD-2505T 250KVp SF6 Gas Insulated Portable X Ray Flaw Detector 5mA 40mm Steel Penetration

Name: RD2505T 250KVp SF6 Gas Insulated Portable X Ray Flaw Detector 5mA 40mm Steel Penetration
Brand: HUIWEI
Price: 17000 USD

Focus Size : 2.0 x 2.0 mm

Radiation Angle : 45 degrees +/-5 degrees

Sensitivity : Better than 2%

Controller Model : HW-001

Delivery Time : 7-15 working days

Working Pressure : 0.45-0.5 MPa

Cooling Method : Anode grounded radiator with forced air cooling

Max Continuous Exposure : 15 minutes

Supply Ability : 500 Sets per Month

X-Ray Tube Current : 5mA

Controller Dimensions : 325 x 270 x 180 mm

Place of Origin : Zhejiang, China

Certification : ISO 9001, CE

Maximum Penetration : 40 mm A3 steel (5 min)

Warranty : 12 Months

MOQ : 1 Set

Price : USD 17000-20000 / Set

Insulation Method : Gas insulated SF6

Altitude : Not exceeding 1500 m

Packaging Details : Standard export plywood case with shockproof foam

Power Supply Capacity : Not less than 3.0 KVA

Controller Weight : <= 9 kg

Payment Terms : T/T, L/C, Western Union

Model : RD-2505T

Generator Dimensions : Phi220 x 220 x 560 mm

Model Number : RD-2505T

Operating Temperature : -30 to +40 Celsius

Relative Humidity : Not exceeding 85%

mA Stability : +/-1%

Brand Name : HUIWEI

Input Power Supply : Single-phase 50Hz AC 220V +/-10%

X-Ray Tube Voltage : 150-250 KVp

Generator Weight : 26 kg

Duty Cycle : Fully automatic 2.5:1 work/rest cycle

Controller Output : DC 100-240V continuously adjustable

Contact Now

Product Introduction

The RD-2505T Portable Industrial X-Ray Flaw Detector is developed and manufactured by Hangzhou Huiwei NDT Equipment Co., Ltd. It is an SF6 gas-insulated, portable radiographic testing system engineered for non-destructive testing (NDT) of welds, castings, pipelines and pressure vessels in field and confined-space applications. Delivering a 150–250 KVp X-ray output at 5mA tube current, the RD-2505T combines strong penetration (up to 40mm A3 steel) with a compact, mobile form factor.

The matched HW-001 intelligent controller uses a modular main circuit, duct-style heat dissipation and an industrial stepless knob for rapid, reliable parameter setting. The unit is fully compatible with global distributors and OEM/ODM demands.

RD-2505T 250KVp SF6 Gas Insulated Portable X Ray Flaw Detector 5mA 40mm Steel Penetration

Key Features

SF6 gas-insulated X-ray generator with anode-grounded, forced air-cooled radiator
150–250 KVp continuously selectable tube voltage, 5mA tube current, ±1% stability
2.0×2.0mm focus and 45°±5° radiation angle for sharp radiographic images
Up to 40mm A3 steel penetration (5 min exposure), image sensitivity better than 2%
Fully automatic 2.5:1 work/rest cycle, longest continuous exposure 15 minutes
HW-001 controller with industrial stepless knobs, LED status display and fault self-diagnostics
Soft-start / slow-shutdown, automatic training mode and discharge self-voltage-reduction protection
Safety-door interlock terminal and over-temperature protection for safe field operation

Technical Parameters

Model	RD-2505T
Input Power Supply	Single-phase 50Hz AC 220V ±10%
Power Supply Capacity	Not less than 3.0 KVA
X-Ray Tube Voltage	150 – 250 KVp
X-Ray Tube Current	5mA
mA Stability	±1%
Focus Size	2.0 × 2.0 mm
Radiation Angle	45° ± 5°
Working Pressure	0.45 MPa – 0.5 MPa
Cooling Method	Anode grounded radiator with forced air cooling
Insulation Method	Gas insulated SF6
Generator Dimensions	Φ220 × 220 × 560 mm
Generator Weight	26 kg
Maximum Penetration	40 mm A3 steel (5 min)
Sensitivity	Better than 2%
Duty Cycle	Fully automatic 2.5:1 work/rest cycle
Max Continuous Exposure	15 minutes
Controller Model	HW-001
Controller Dimensions	325 × 270 × 180 mm
Controller Weight	≤ 9 kg
Controller Output	DC 100V – 240V, continuously adjustable
Protection Functions	mA under/over-voltage, real-time under/over-voltage, automatic discharge detection
Operating Temperature	-30°C to +40°C
Relative Humidity	Not exceeding 85%
Altitude	Not exceeding 1500 m

Radiographic test conditions: focal length 600mm, Agfa film, double-sided lead foil intensifying screen, developer temperature 22°C, film density ≥ 1.5.

Company Profile

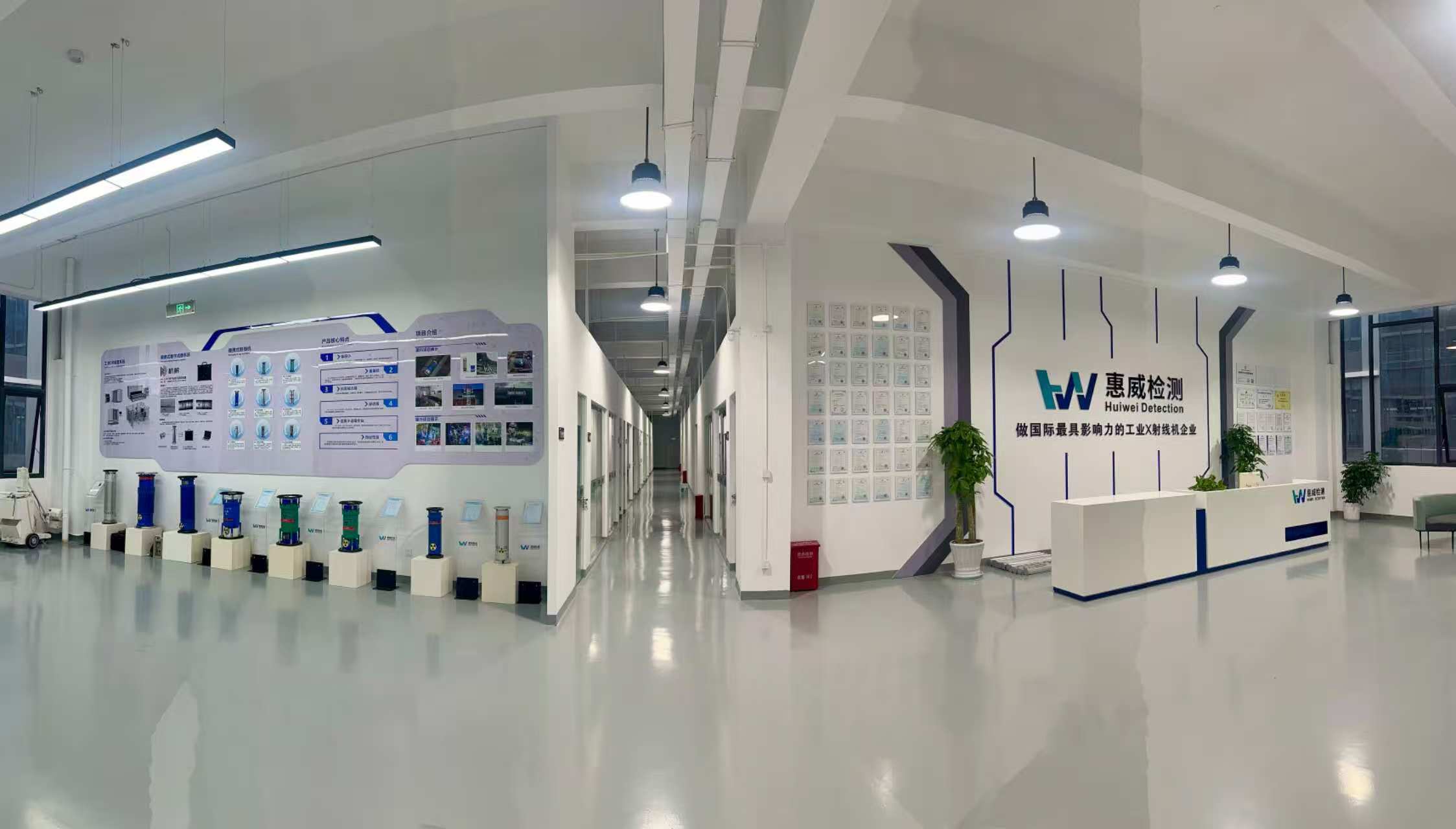

Founded in 1993, Hangzhou Huiwei NDT Equipment Co., Ltd. is a national high-tech enterprise specializing in the R&D and manufacture of portable industrial X-ray flaw detectors. From a 12,000 m² base in Hangzhou, Zhejiang, we hold 31 patents and software copyrights and operate an R&D center with China Jiliang University.

Our equipment serves the oil & gas pipeline, boiler & pressure vessel, chemical and aerospace industries, and we have long-term partnerships with clients such as CNPC and Sinopec. HUIWEI is committed to becoming a leading international manufacturer of high-performance industrial radiography equipment.

RD-2505T 250KVp SF6 Gas Insulated Portable X Ray Flaw Detector 5mA 40mm Steel Penetration

Shipping Information

Packaging: Standard export plywood case with shockproof foam, suitable for sea and air freight.
Delivery Time: 7–15 working days after order confirmation (stock items ship faster).
Shipping Terms: EXW / FOB / CIF available; shipping method (sea, air, express) can be arranged per customer requirement.
Port: Shanghai / Ningbo, China.

After-Sales Service

12-month warranty on the X-ray generator and controller.
Lifetime technical support and spare parts supply.
English operation manual and online operation guidance provided.
OEM/ODM customization (logo, model parameters, packaging) available.

Why Choose HUIWEI

30+ years of NDT manufacturing experience with in-house R&D and production.
ISO 9001 and CE certified products.
Factory-direct pricing and stable supply for global distributors.
Overseas service engineers and prompt technical response.
